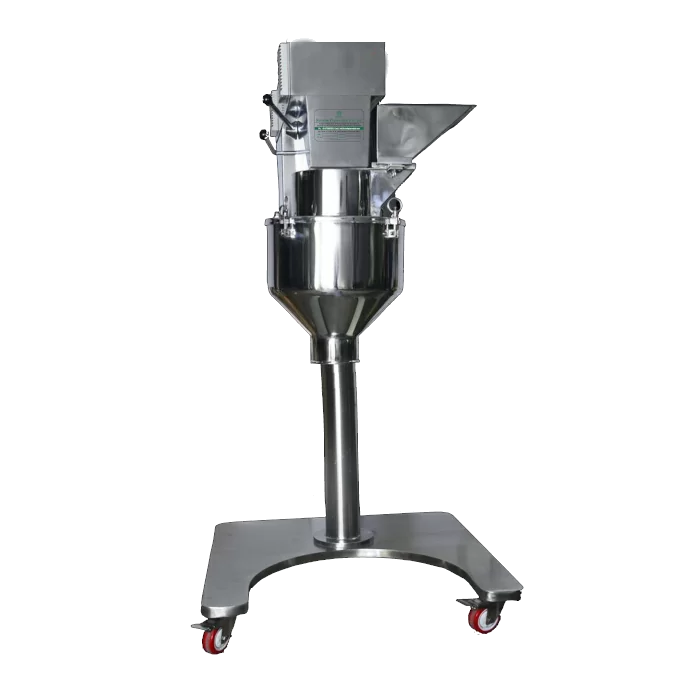

Multi Miller
Multi mill machines are widely used for wet and dry granulation, pulverization etc. These machines find application in pharmaceutical, chemical, bulk drug, cosmetic, dyestuffs and food processing industries. The unit consists of vibro sifter, tablet coating pan, spray coating machine and dust extractor. Our multi mill machines can be customized based on the specific requirements of the clients.
Operation
- SS beaters having knife and impact edges rotate within a selected screen
- The material fed in the hopper enters into the processing chamber where it moves to the pentery and passes through screen
- Output & quality of final products depend on (I) shapes of beaters (Knife/ impact edge)Â (ii) speed (iii) size of screen
Silent Features
- All contact parts SS 304/ SS 316
- Direction of beaters can be changed by reversible switch from knife to impact toward and vice versa
- All contact parts can be easily and quickly dismantled for cleaning
- Machine is designed for continuous operation.
- Castors are provided for mobility of the machine
- Flame proof electrical can be provided at extra cost
- Beaters and scraper blades are hardened and hard chrome plated
Technical Specification — Output Reduction
| Parameter | Specification / Value |
|---|---|
| Output (Reduction) | 50 Kg to 200 Kg per hour (depending on product and required size) |
| Beater | 12 nos. with knife and impact edges & 2 scraper blades |
| Motor | 3 HP, 2800 RPM, 415 V, 50 Hz, 3-phase AC |
| Screen Area | 495 × 135 mm (66,825 sq. mm) |
| Screen Size |
(I) Perforated: 0.5 mm to 25 mm (II) Wire mesh: 4 to 100 mesh |
| Rotor Speed (selectable) | 750, 1500, 2300, 3000 RPM |
| Dimensions (L × W × H) | 1230 mm × 760 mm × 1700 mm |
| Rotor Assembly Diameter | 250 mm |
| Net Weight | 250 Kg |
Notes: Values supplied as provided. Adjust motor & rotor selections according to the processed material and required throughput for best performance.
